Infinity Logger (iLogger) – Vesc Data Logging

$64.99

Key features:

  • Dimensions:  42.60mm x 19.90mm x 9mm
  • CAN BUS+ UART Comms support.
  • Works as transceiver for the iRemote.
  • Multiple Vesc support and automatic logging on both CAN Bus and UART ports.
  • Instantly share your record online for easy export (Example https://api.wavrx.com/r/2d97032bc3dcfec274617aa93f780560)
  • Life Time data recording
  • GPS automatic logging
  • SmartBMS monitoring support (DieBieMS, FlexiBMS)
  • Easily view records using in-app data visualization.
  • Full SD Card in-app browser to easily access all recorded logs
  • OTA updates
  • Package includes: 1x iLogger module • 1x 7pin JST-PH cable • 1x CAN cable • 1x GPS cable • 1x external antenna • *micro SD card not included*

Add-ons

Add some extra goodies while you are at it.

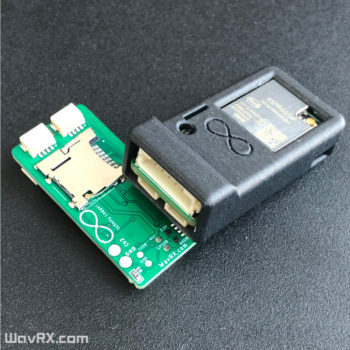

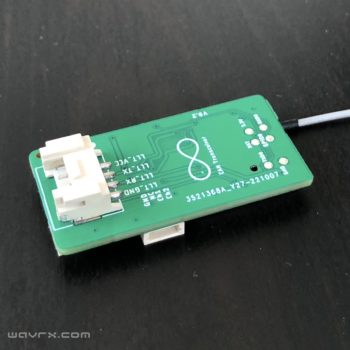

iLogger is an all in one logging solution for Vesc based ESCs. It has a compact design and supports both CAN and UART protocols.
CANBUS2-150x150 UART2-150x150
Multiple Vesc support and automatic logging on both CAN Bus and UART ports.
Life Time data recording include total odometer distance and runtime.
Full SD Card in-app browser to easily access all recorded logs under Year/Month/Day/ Time_.lg format
Quickly view a specific log using in-app data visualization or export by uploading to the cloud for free backup and extended online visualization.
Many exporting formats available: PNG, JPEG, SVG, PDFJSON, CSV, XLSX, HTML

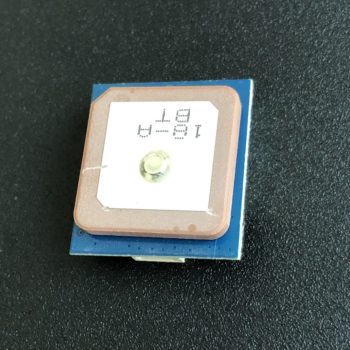

Full GPS detection and automatic logging when a GPS module is connected to the iLogger module.

Advanced Vesc logging and data visualization of each record.

Logged data includes: Voltage, ESC Temperature, Motor Temperature, Speed, Duty Cycle, Battery Current, Motor Current, Peak Watts output, Efficiency, Runtime and Energy consumption.

e7e1c2f211a4b459fa8408e3f3096fef8a80deb2

Real time telemetry streaming with live Vescs toggle switch

Real time BMS data streaming (DieBieMS / FlexiBMS)

Example recorded log using iLogger. Click to open full URL

download-on-app-store-png-free-app-store-badge-icon-download-free-icons-for-commercial-use-256-1-e1619938556395
google-play-badge-128x128-1-e1619938578527

Variations

iLogger, iLogger + 3D enclosure, iLogger + GPS, iLogger + enclosure + GPS
